5800mm Gabion Mesh Machine Automated Mesh Creation SLW58A
We specialize in the R&D and manufacturing of high-performance gabion mesh machines, widely used in hydraulic engineering, slope protection, infrastructure construction, and eco-restoration projects. Featuring a self-developed 5-axis CNC linkage system, our machines lead the industry in weaving precision, operational stability, and intelligent automation. Combined with full CNC automation, modular design, and eco-friendly operation, we deliver flexible, efficient, and sustainable gabion mesh solutions for global clients.
To meet diverse customer requirements in precision, efficiency, and weaving complexity, we offer 3-axis and 5-axis linkage drive CNC gabion mesh machines. We recommend evaluating your specific production needs before selection.
Comparison: 5-Axis vs 3-Axis Linkage Drive
| Comparison Item | 3-Axis Linkage Drive | 5-Axis Linkage Drive |
Number of Control Axes |
3 synchronized axes |
5 synchronized axes |
System Complexity |
Simpler structure and logic |
More complex and coordinated |
Twisting Precision |
Standard precision, suitable for regular mesh |
High precision for consistent and accurate twisting |
Production Efficiency |
Moderate efficiency |
Higher speed and output rate |
Supported Mesh Types |
Supports standard gabion mesh |
Capable of complex or custom mesh patterns |
Synchronization |
Good for basic operations |
Enhanced synchronization and stability |
Target Users |
For customers with standard needs |
Ideal for high-end and automated production |
Cost Investment |
Lower investment |
Higher investment due to advanced control system |
1.Gabion Mesh Machine Key Components:
Wire Feeding System: Uncoils and straightens steel wire (typically galvanized or PVC-coated).
Mesh Forming Unit: Forms mesh through welding or weaving, tailored to gabion specifications.
Cutting Mechanism: Precision-cut wires or mesh panels using hydraulic or pneumatic tools.
Control Panel: User-friendly CNC interface for programming dimensions, mesh patterns, and production speed.
Assembly Unit: Some machines fold and assemble mesh into 3D boxes, while others produce flat panels for later assembly.
2.Gabion Mesh Machine Working Process:
Wire Preparation: Wires are fed, straightened, and cut to required lengths.
Mesh Creation: Wires are welded or woven into hexagonal or rectangular grids.
Cutting & Shaping: Panels are cut to size, with edges shaped for assembly.
Automated Assembly: Panels are folded into box structures, with spiral connectors or rings added for stability.
3.Gabion Mesh Machine Technical Specifications:
Wire Diameter: 1.5-4.5mm.
Mesh Sizes: Adjustable (e.g., 60x80 mm to 130x160 mm).
Production Speed: Up 60 times per minute (producing 30 meshes), depending on the model and complexity of the product.
Power Requirements: The machine is driven by five servo motors, including four 11kw motors and one 15kw motor.
4.Gabion Mesh Machine Two Core Advantages:
1. Modular Dragplate Design-Oone Machine, Multiple Products, Cost Effiency
Our gabion machines features modular dragplate technology, alloowing a single machine to produce various product types by simply switching drag plates. This innovation offers:
Flexible production for quick market response.
Cost savings over 40% by reducing harware investment and optimizing space and maintenance.
Suitable upgrades with future-proof compatibility, minimizing waste and maximizing ROI.
2. Smart Remote Maintenance-Uninterrupted Production Assurance
Our fully automated CNC gabion machine is equipped with intelligent remote maintenance systems, providing:
Remote diagnostics for precise issue identification
Quick problem resolution through remote adjustments and guided repairs.
Reduced operational costs and enhanced productivity with minimal downtime.
Data-driven management for optimized performance and long-term efficiency.
These advantages cater to clients' needs for flexibility, cost-effectiveness, and production stability.
3.Basic Model Specification Of Gabion Mesh Machine
| Parameter | Specification | Description |
| Weaving Width | 5200 mm | Standard effective weaving width |
| Wire Diameter Range | 1.5–4.5 mm (varies by spec) | Varies depending on weaving range and specification |
| Mesh Size Specification | 6.6, 6.8, 7, 7.2, 8.4, 8.6, 8.8, 9, 9.2, 9.4, 10.2, 10.6, 11.6 mm | Customizable to meet various gabion requirements |
| Twisting Method | 3 twists, 5 twists, long or short pitch | Available in 3-twist, 5-twist, long or short twist patterns |
| Operating Speed | Approx. 70 cycles/min | Actual speed varies based on mesh width and wire diameter |
| Maximum Output | 320 m/hour | Theoretical maximum output, varies with operating conditions |
| Motor Power | 15 KW × 1, 11 KW × 4 | 1 main motor and 4 auxiliary motors |
| Auto Pause System | ✔ Yes / □ No | Stops automatically in case of fault or wire breakage |
| Auto Lubrication System | ✔ Yes / □ No | Automatic lubrication to reduce maintenance needs |
| Boundary Dimension | 9.79 × 1.40 × 3.07 m | Length × Width × Height |
| Net Weight | 18.5 tons | Net weight (excluding packaging) |
| CNC System | Self-developed electronic cam system | Customizable based on customer requirements |
4. Introduction to Gabion Mesh Machine Auxiliary Equipment
| Equipment Name | Equipment Model | Function Description |
| Cutting Machine | BWR-JW40A | Precisely cuts woven gabion mesh to specified sizes, ensuring accurate cut positions and neat edges; suitable for fixed-length cutting of various gabion specifications. |
| Curling Machine | BWR-JB40A | Performs edge curling to enhance strength and stability, preventing wire loosening or scratching; facilitates splicing and fixing during installation. |
| Spring Machine | BWR-JHB13B | Produces spring tubes with consistent specifications to match the mesh body, improving overall structural stability of gabion mesh. |
5.Detailed images:
Product Tags:
|
|

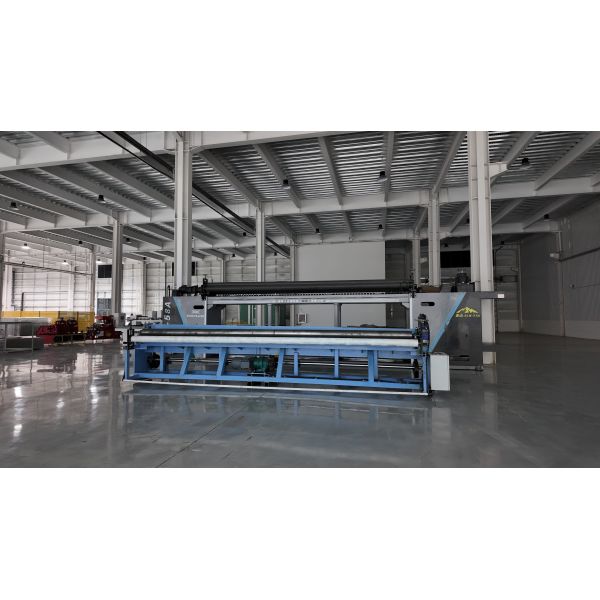

5800mm Gabion Mesh Machine Automated Mesh Creation SLW58A Images
|
